4008066788
SULUNTrusted and reliable solutions

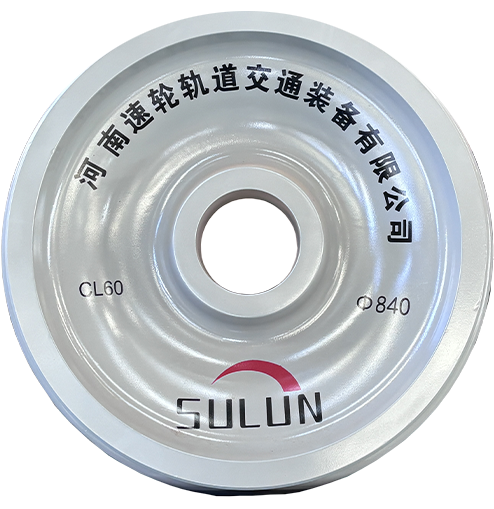

Rail transit wheel
Mining wheel

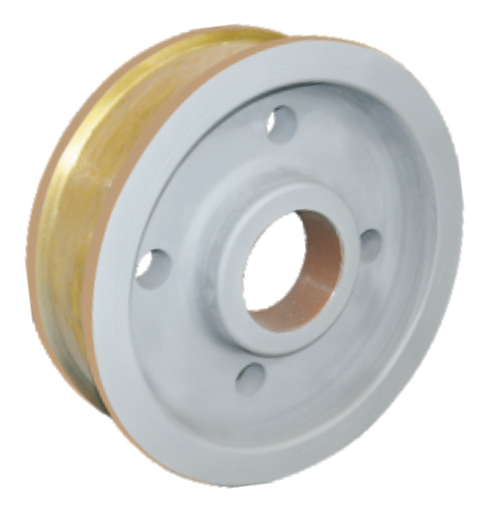

Industrial wheel
Industrial wheel
sulunWheel production process
Professional equipment configuration can meet the complete process requirements of all customers
SULUNWheel production process
Professional equipment configuration can meet the complete process requirements of all customers
The diameter 24M annular heating furnace is fully loaded with 360 pieces of material. It is heated by natural gas, and the temperature uniformity is ± 10 ℃ through pulse proportional temperature control. The furnace discharge temperature is 1250 ℃, with the heating capacity of 80 pieces per hour.
The wheel pre-forming is completed on a 50MN frame-type oil press, and the metal is distributed for the first time after being pressed to the height required by the process.
The wheel forming is completed on a 100MN frame hydraulic press to realize the second metal distribution of hub, spoke and rim.
The formed rear wheel blank is put into the DRAW1250 mill for rolling, so that the web plate, rim, rim and other parts can achieve effective forming results, and the rolling accuracy can achieve ± 1mm.
The rolled rear wheel blank is put into a 50MN frame hydraulic press to complete the final forming of the wheel blank web and rim, and the core material is separated from the wheel body through punching.
The quenching system can automatically control the water temperature, water pressure and water volume, realize the online monitoring of quenching parameters, and effectively guarantee the uniformity, consistency and stability of product hardness.
About
500+
Team members
70%
developers
200+
project
30+
Countries And Regions

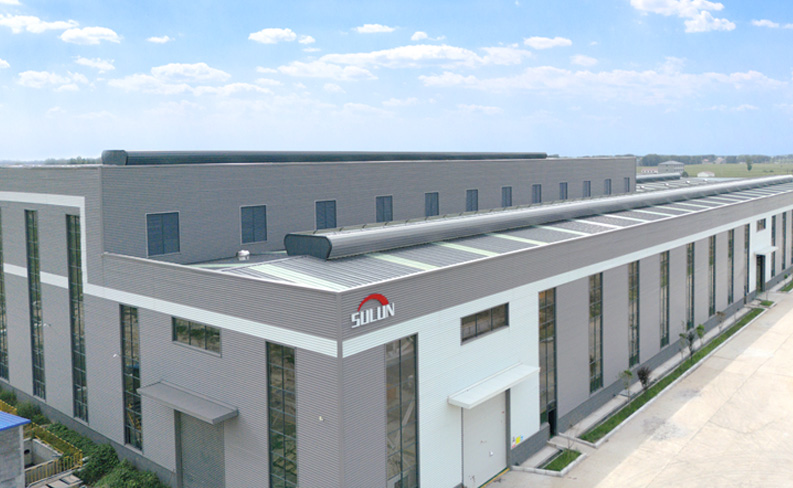

The world's high-end intelligent manufacturing, leading the solution provider of rail transit wheel manufacturing industry
Henan Speedwheel Precision Manufacturing Co., Ltd. is the fourth high-end equipment enterprise in China and the first in Henan Province to produce wheels, axles, wheel sets and industrial wheels for rail transit. The "high precision and specialized" production line with German technology as the main body is introduced. The product can be manufactured with a diameter of 400mm to 1350mm, and can produce a full range of wheel products required by the current market. Focusing on the world's high-end intelligent manufacturing, the company has led the rail transit wheel manufacturing industry, established specialized product design, material research and development, process research and experimental testing institutions, and has technical centers, key laboratories, academician workstations and other innovative platforms, actively expanding the "production, learning, research and use" exchange and cooperation between universities and authoritative research institutions, and mastering the core technology of research, development and manufacturing. The company is committed to the standardization, online, automation and intelligent construction of processes, and builds a world-class benchmarking enterprise through software application and data management. We will continue to improve our product R&D and manufacturing capabilities, build the world's most important rail transit wheel, axle, wheel set assembly and industrial wheel R&D, design, manufacturing, sales and service professional enterprises, and lead the direction of rail transit intelligent wheels.
sulunProgressiveness of equipment
